Optical Or Coaxial Dolby Digital Audio Converter
Optical Or Coaxial Dolby Digital Audio Converter
Couldn't load pickup availability
If your SEREONIC TV-SoundBox is not playing audio from video streaming services such as Netflix, you will need to use the DAC-202B to convert the Dolby Digital audio signal from your streaming video service to analog audio.
- Compatible with Coaxial or Optical audio connection.

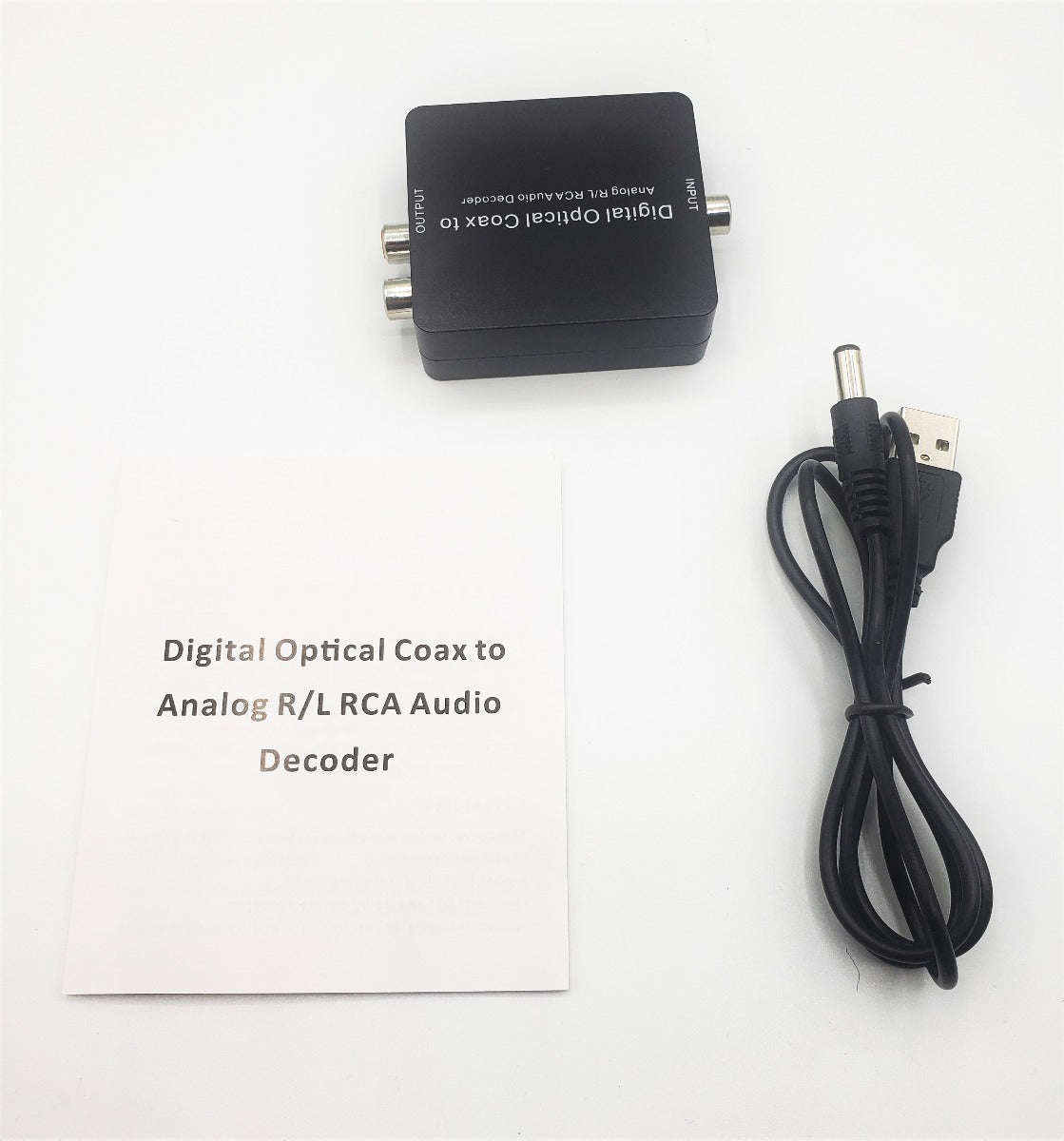

- Powered from the TV-SoundBox base using the provided USB power cable.

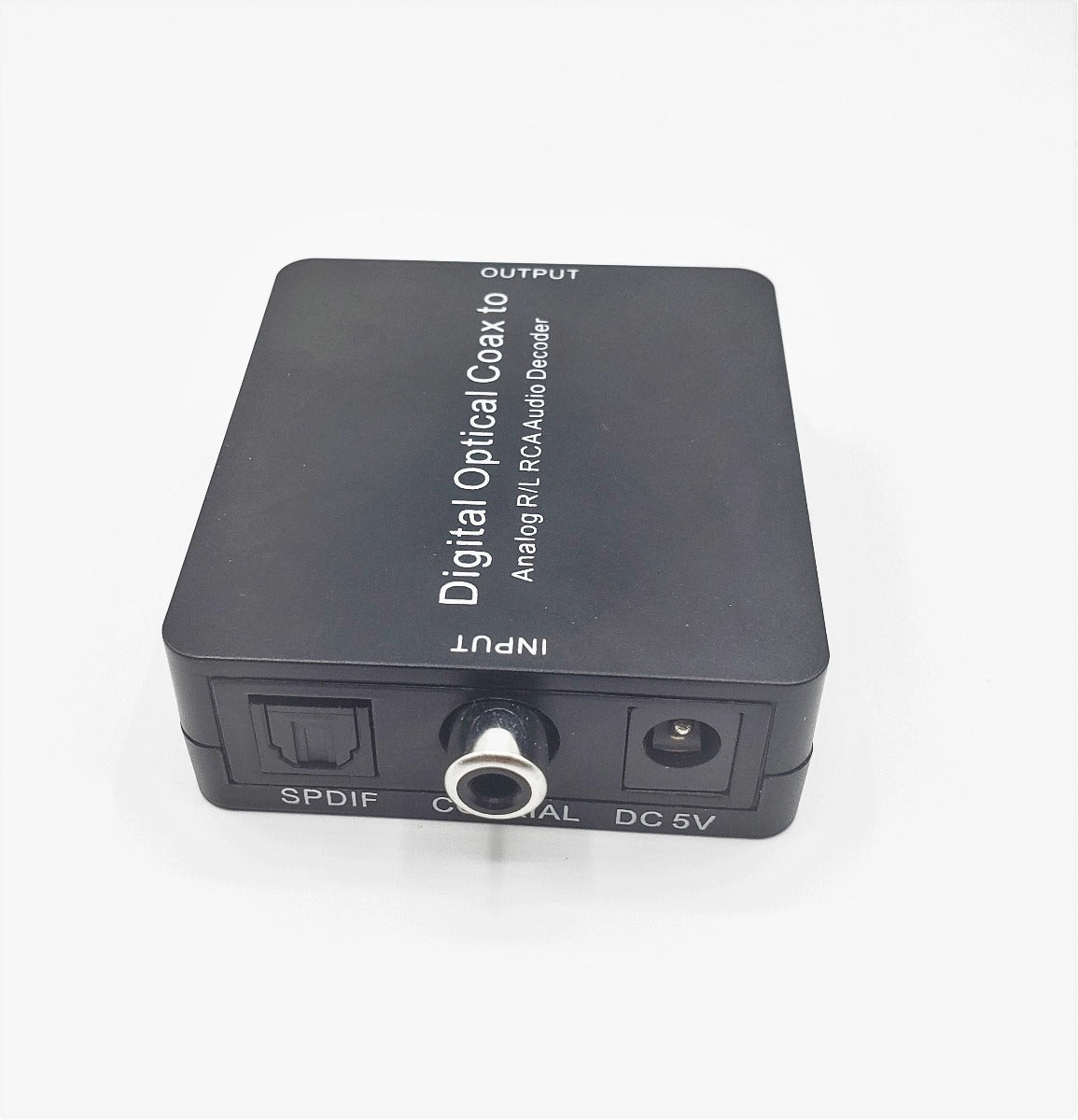

Digital Optical Cable IN ........................... TOSLINK Rectangular type plug
Coaxial Cable IN ....................................... RCA Type Connector
LED lndication .......................................... Power

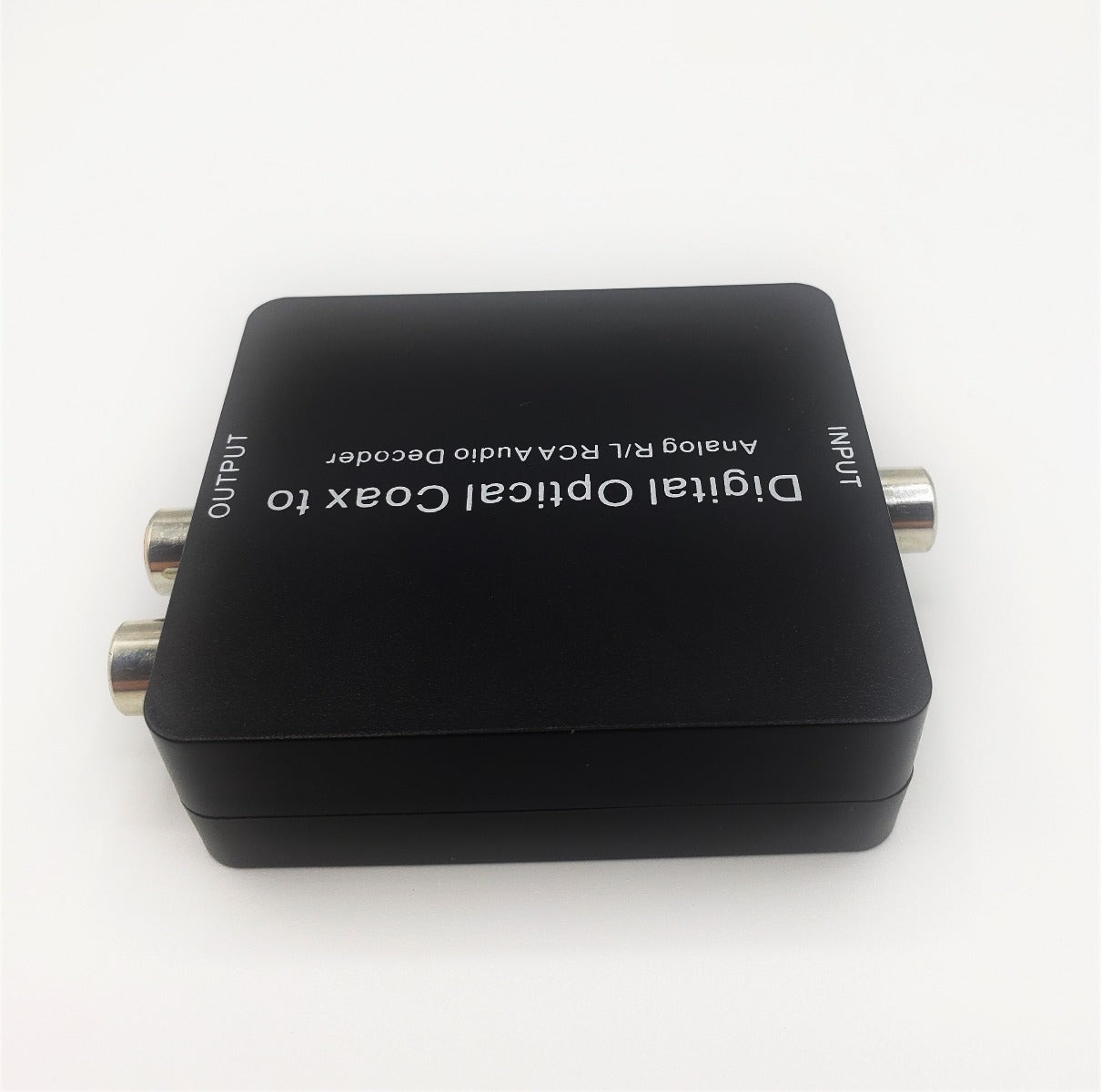

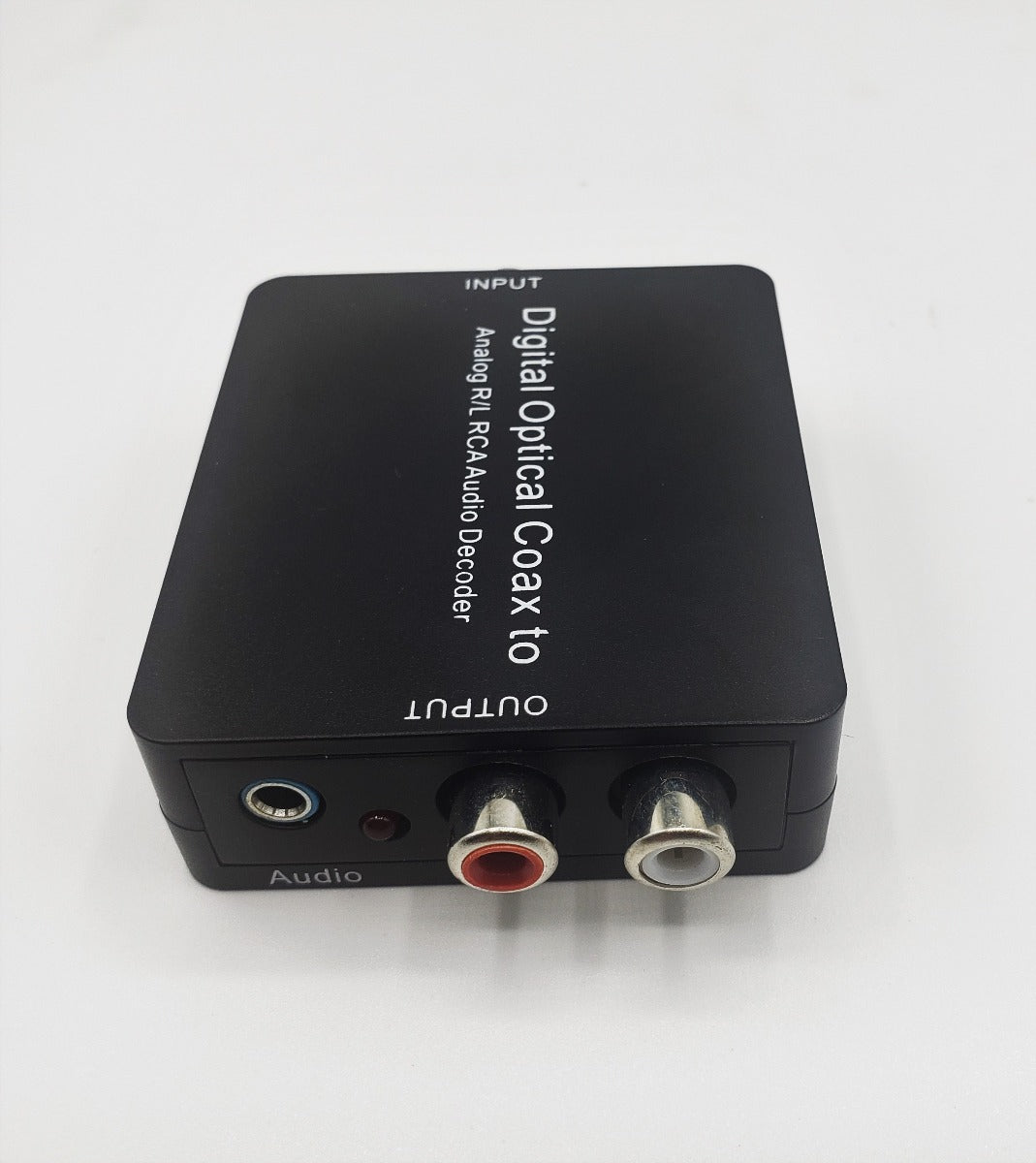

Audio Output ............................................ RCA Type RL
Audio Format Support ............................. LPCM 44KHz, 96KHz
AC Adapter ............................................... 5 VDC
DAC 202
Q: The RCA cables are hooked up to one end of the DAC-202 and the optical cord is hooked up to the other end and to the TV, but the power light will not turn on.
A: Verify that the A/C Adapter is plugged into the side of the DAC-202 and an outlet.
Q: Everything is hooked up, but I am still not getting sound.

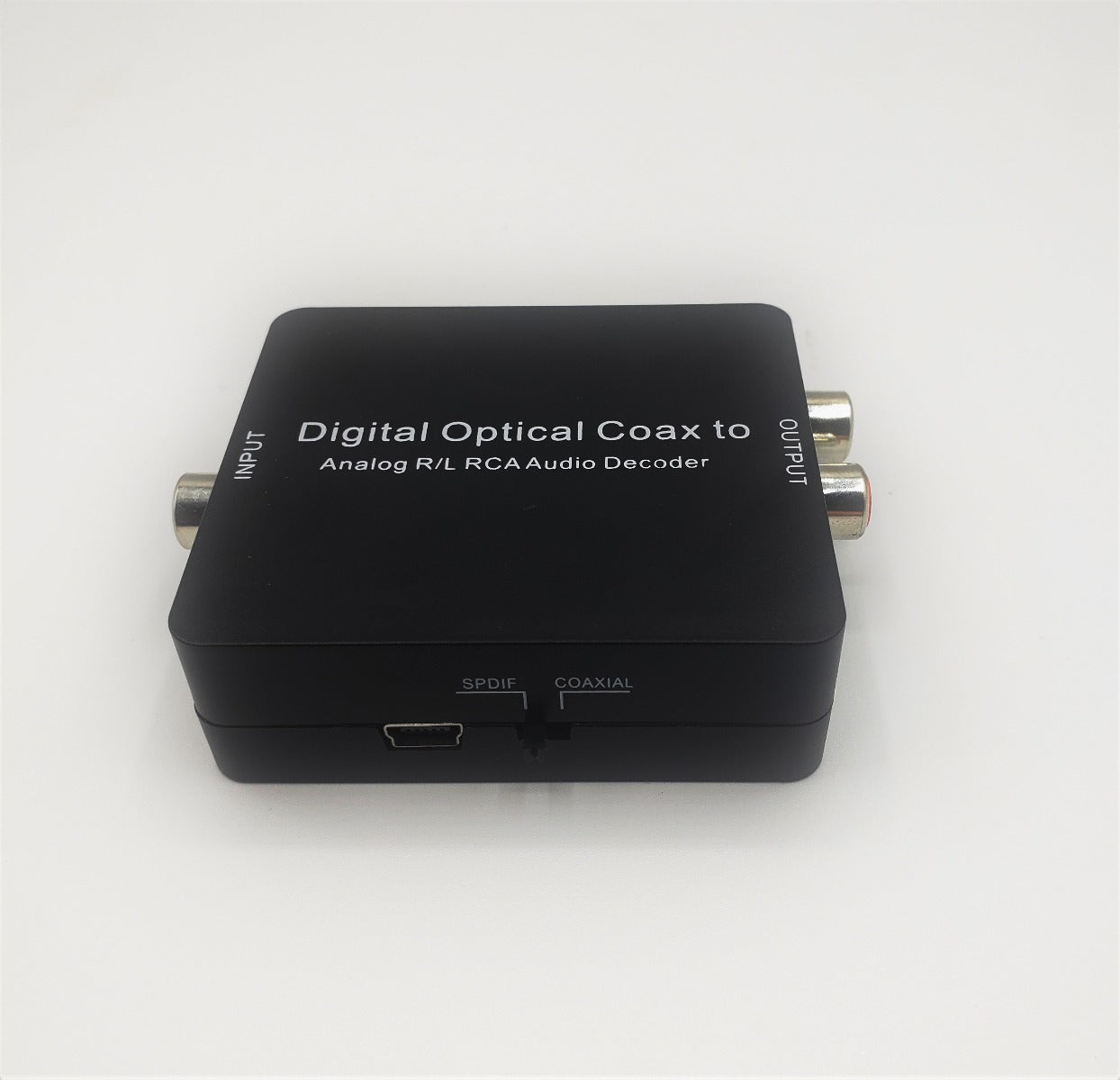

A1: Verify the DAC-202 side switch match the type of connection (Optical or Coaxial).
A2: Verify the plastic covers on the tips of the optical cord were removed before setting up.
A3: Verify you're getting power by the power light turned on.
A4: Check all connections to verify they are securely set.
